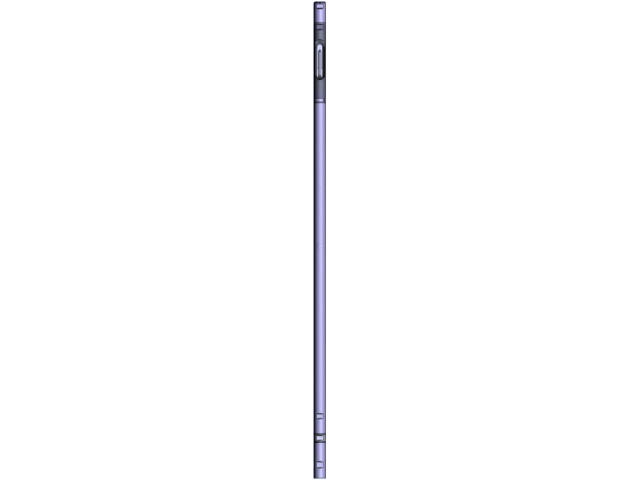

The KSA-38 is designed to study wells while monitoring the development of oil and gas fields.

It has two docking devices, the upper one (MRV-38) for connecting the
flow meter module and the lower one (MRN-38) for connecting various fixture modules.

Information is transmitted via single-core cable in digital format.

Determining
locations of casing leakage
fluid influx intervals into the well
perforation intervals
composition of the wellbore fluid
position of the tubing and casing sleeve joints
Measurement parameters
Temperature (inside the module) 0 ... +150 °C
Temperature (ambient) -10 ... +150 °C
Pressure 0 ... 80 MPa
Specific Electrical Conductivity
(SEC) of the liquid 0,1 ... 50 Sm/m
Gamma exposure dose rate (EDR) 1 ... 100 мкР/ч
Water content of oil 0 ... 100 %
Collar locator 5/1 signal/noise
Indication
Thermal indication of inflow 0,1 ... 50 m3/h
Zenith angle indication 0 ... 180°
Indication of rotation angle 0 ... 360°
Study of the nature of acoustic noise in the well
Noise indication (HF) 12 ... 32 MHz
Noise indication (NF) 0,1 ... 12 MHz
Noise indication (LF) 0 ... 100 kHz
Requirements for the operating environment
Maximum operating temperature max 150 °C
Maximum operating pressure max 100 MPa
