SmartWatcher
TORNADO SmartWatcher is available in multiple configurations for downhole data interfacing, processing and logging. This system has a modular structure that connects to multiple gauges with a single cable (maximum four downhole gauges) and supports Modbus/ RTU communication.

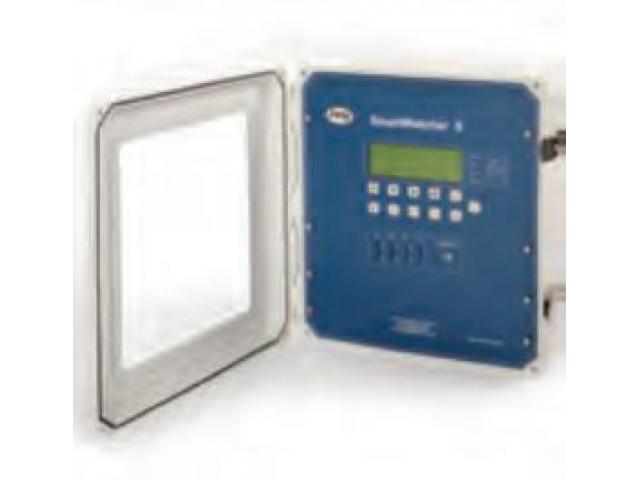

SmartWatcher II
This is the most advanced SDAU that TORNADO offers, because it is able to have up to four wells communicating to it. Each well can have a maximum of four gauges connected for a total of 16 gauges communicating with SmartWatcher II unit. Other features include internal memory, an SD card, Modbus/Push data port via RS485 or RS232, AC & DC power entries, and solar station availability. The electronics are enclosed in a NEMA-4 box with a large viewing window so that data reading and system status can be monitored without opening the door. The unit is compatible with TORNADO’s online remote monitoring.

SmartWatcher Touch
SmartWatcher Touch can display two channels of pressure, one channel of temperature and three axes of vibration. The data channels are displayed on a touch screen which provides a convenient interface for viewing real time numeric data or graphical representations of the data. The samples that are displayed are simultaneously saved to text files which can later be extracted to a standard USB memory drive.
Remote Monitoring
For clients with operations in remote, unpopulated areas, TORNADO remote monitoring is an excellent way to monitor equipment and view data as needed. Rather than manually getting information at the jobsite, these measurements are accessible in real time using an onsite modem with wireless serial communication.
Data from the tools is stored in the surface unit’s memory and also received and stored on secured servers, designated solely for TORNADO clients. The system can receive periodic data updates and trigger alarms when certain parameters are met.
